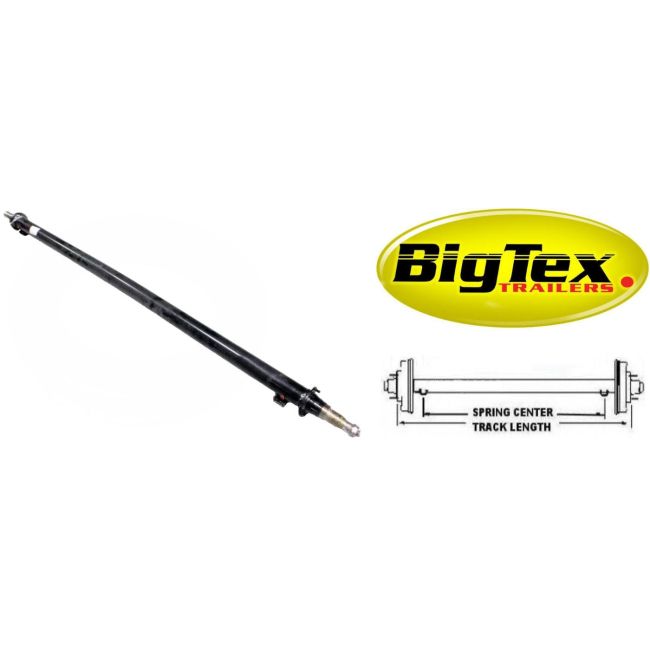

Big Tex Straight Trailer Axle, 95" H.F./80" S.C. (5,200 lb.) #6100159
Stock# T7107249
Replacement Dexter Axle brand trailer axle designed specifically for use with Big Tex trailers. Axle weldment includes super lube grease zerk spindles and pre-welded spring seats. Black powder coated finish.
Overall Length = 100.82" Hub Face = 95" Spring Center = 80"
Ships 'Truck Freight' and is subject to delivery service limitations. (Click Truck
for details)
Replacement Dexter Axle brand trailer axle designed specifically for use with Big Tex trailers. Axle weldment includes super lube grease zerk spindles and welded spring seats. Wheel hubs, bearings and hardware sold separately.
Axle Type: 3" Round Tube - Black Powder Coated
Load Rating: 5,200 lbs.
Overall Length: 100.82" End of Spindle to End of Spindle
Spring Center: Pre-Welded Seats at 80" on center
Brake Flange: 5-bolt
Hub Face: 95"
Hub Type: 6 bolt (Not Included)
Outside to Outside Brake Flange: 86-3/8"
Spindle Size: 1-3/4" x 1-1/4" (grease seal lip I.D. = 2.25")
Ships 'Truck Freight' and is subject to delivery service limitations. (Click Truck for details)
| Product Name | Big Tex Straight Trailer Axle, 95" H.F./80" S.C. (5,200 lb.) #6100159 |
|---|
