LOADRITE - KNOTT 10" Vented Galv. Disc Brake Rotor (5-Lug) - 4,200 lb. #4265.46K
Stock# 1041506 FREE GROUND SHIPPING TO LOWER-48 U.S.
LOADRITE - KNOTT zinc plated disc brake rotor is vented to help shed heat and can be used with trailer axles that have up to a 4,200 lb. capacity. They will accept 13" to 15" wheels.

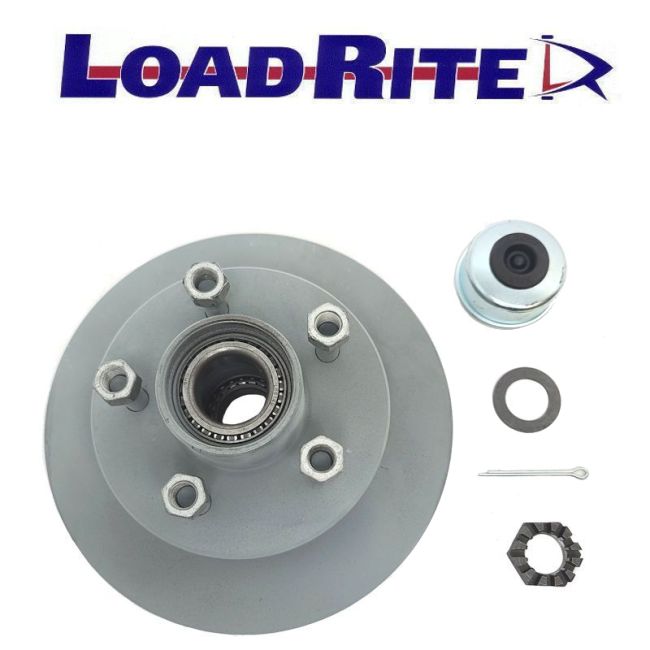

LOADRITE - KNOTT galvanic coated disc brake rotor is vented to help shed heat and can be used with trailer axles that have up to a 4,200 lb. capacity. They will accept 13" to 15" wheels. Includes grease cap, washer, cotter pin, castle nut, and lug nuts.
Spindle Size: 1-3/8" (L68149) x 1-3/8" (L68149) tapered
Diameter: 9-3/4"
Bolt circle: 5 on 4-1/2"
Inner Bearing: 1-3/8" (L68149)(Included)
Inner Race: L68111 (Included)
Outer Bearing: 1-3/8" (L68149)(Included)
Outer Race: L68111 (Included)
Seal: 1.72" x 2.56" (Pre-installed)
Minimum Thickness: 17mm
Product Name | LOADRITE - KNOTT 10" Vented Galv. Disc Brake Rotor (5-Lug) - 4,200 lb. #4265.46K |
---|
Unique Functional Products, UFP as they are commonly known, offers two different series of disc brakes. They offer a DB-35 and a DB-42 and since the parts are not interchangeable it is essential to be able to identify what you have.
DB-35
The DB-35 visually appears more similar to an automotive caliper. It will have two
mounting ears below the body to attach the caliper directly to the axle brake flange. The rotor is also identifiable but it can be a little more difficult. On the rotor/hub there will be a minimum thickness of 17mm
(MIN THK 17.0 MM) stamped on the inside of the back.
DB-42
The DB-42 is visually unique and consists of a thick caliper body that houses the piston, and a metal shroud that will house the pads. The DB-42 will have only one mounting bolt hole located in the center of the bleeder valve and brake line port. On the rotor/hub there will be a
minimum thickness of 22.40mm (MIN THK 22.40 MM) stamped on the backside.
